01
Proximal
Where the shaft meets its interfaces and handling components.
01 / Interventional Neurovascular
Neurovascular Device Manufacturing
From catheter engineering through reinforced shaft manufacturing, precision extrusion, specialized processing, and microcatheter assembly, Cordica builds the full neurovascular device system in-house, backed by the materials expertise and development support demanding programs need.
Shaft ArchitectureDistal ProcessingComponent Integration
02 / Device System
A catheter architecture only works when every region works as one system.
Geometry, materials, reinforcement, layering, liners, coatings, bonding, markers, and assembly aren't separate decisions. Each one connects to the pathway the finished catheter has to travel.
02
Shaft
The tubing, liners, polymer layers, braiding, coiling, and reflow that build the working length.
03
Transition
Where mechanical and dimensional requirements shape one continuous construction.
04
Distal
Tip forming, coatings, marker bands, nitinol, and hypotubes, finished by bonding and assembly.
03 / Distal + Shaft Architecture
Shaft, transition, distal, and component requirements move together.
The visualization is illustrative and contains no device specifications.
Shaft Architecture
Braiding, coiling, liners, polymer layers, and reflow get engineered together, not stacked on as separate steps.
Braiding + coilingLiner integration
Technical References
Catheter shaft references
01Braided vs. Coil-Reinforced ShaftsWeigh braid and coil reinforcement against the design factors that separate them.02PTFE-Lined Catheter LumensSee how a low-friction liner integrates with the rest of the shaft wall.03Multi-Durometer Catheter ShaftsHow durometer changes along a single shaft, region by region.
04 / Engineering + Manufacturing
Shaft, tubing, finishing, and assembly requirements move together, not in sequence.
At this scale, extrusion and materials can't be evaluated on their own. Small dimensions and integrated constructions mean every decision touches the rest of the build.
Integrated Shaft Construction
Braiding, coiling, liners, polymer layers, and reflow get engineered together, shaped by what the device actually requires.
Braiding and coilingShaft layeringReflow processingLiner integration
Precision Tubing & Materials
High-performance polymer extrusion builds single-lumen, multi-lumen, multi-layer, and tapered constructions as part of the complete architecture, not as standalone components.
PebaxPTFEFEPNylon 12Hytrel®
Distal Processing & Finishing
The shaft is only part of it. Specialized processing carries through to the distal features and components the device depends on.
Distal tip formingHydrophilic coatingMarker-band attachmentNitinol integrationHypotube processing

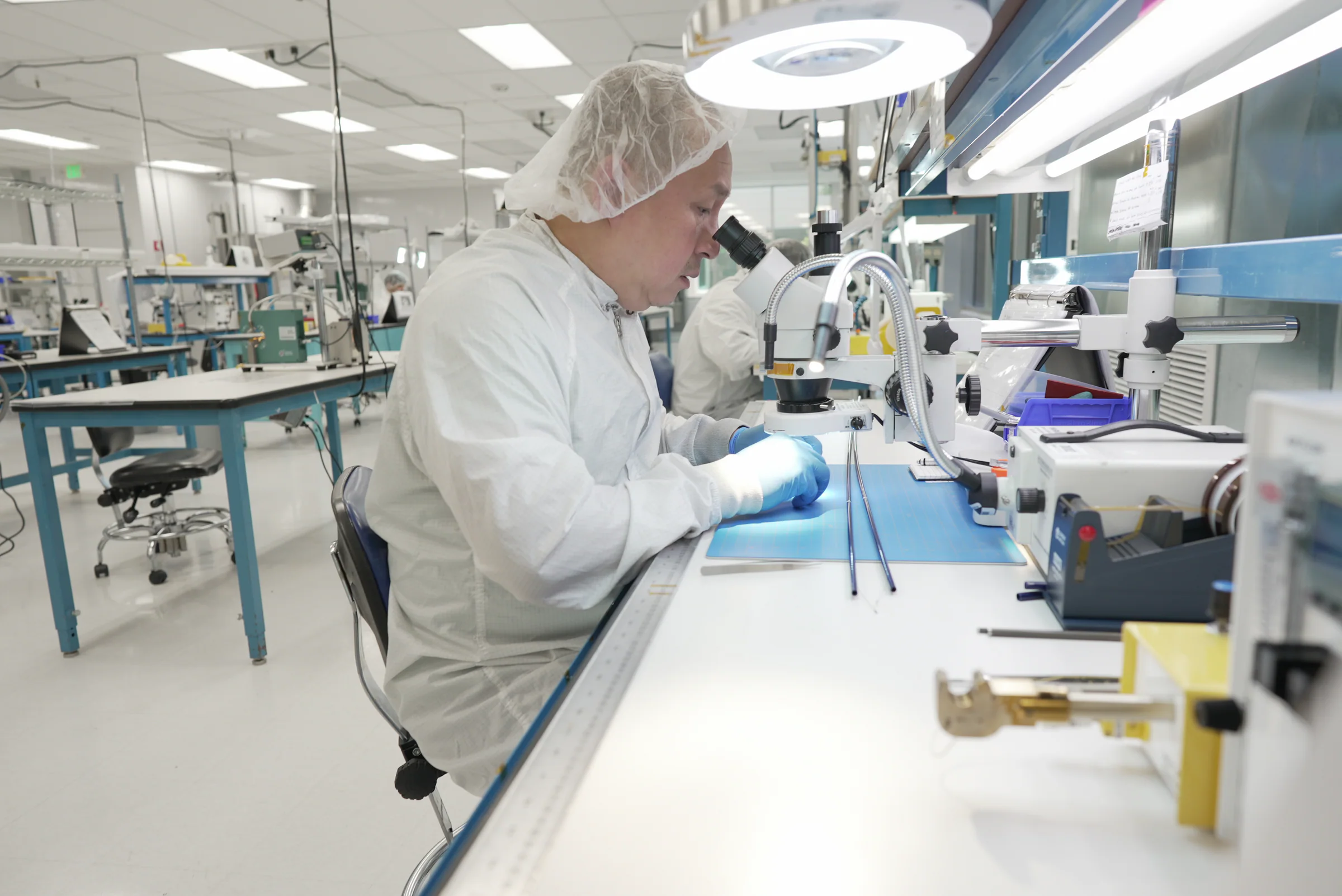

Assembly & Production Control
From there, catheter components move through precision assembly, inspection, testing, kitting, labeling, and packaging.
Microcatheter assemblyCleanroom assembly where requiredManual and automated assembly
05 / Capabilities Around the Device
Every technical discipline the device needs, working around one product system.
01
Precision Extrusion
Custom tubing and complex extrusion builds engineered for what neurovascular catheters actually require.
→02Advanced Materials
Polymer expertise that carries through extrusion, catheter construction, processing, and component manufacturing.
→03Automated Assembly & Packaging
Precision assembly, inspection, and automation, carried through kitting, labeling, and packaging.
→04Cleanroom Molding
Precision and micro-molding for the components a demanding device can't compromise on.
→06 / Development Pathway
The catheter and its manufacturing pathway develop together, not one after the other.
Architecture, prototyping, testing, and manufacturing readiness all mature alongside the device, not after it.
01
Develop
Architecture, prototyping, test strategy, and manufacturability, worked out together.
02
Prepare
Materials, tubing geometry, shaft construction, and the specialized processes the build depends on.
03
Produce
Distal processing, component integration, assembly, inspection, and testing, brought together into one build.
04
Scale
Production controls, automation, kitting, and packaging, ready for volume.
07 / Application Context
Neurovascular applications that don't leave room for a weak link in the catheter system.
01
Thrombectomy Systems
Catheter shafts, reinforced constructions, precision components, specialized processing, and the assembly that brings them together.
02
Aspiration Systems
Tubing, shaft construction, materials, catheter processing, and the downstream assembly that finishes the device.
03
Microcatheters
Small-diameter tubing, reinforced shafts, distal processing, precision components, and assembly built for tight tolerances.
Start a Project
